How Do Compound Turbochargers Work?

How Compound Turbochargers Work?

The Role of the Smaller Turbo

The smaller turbo in a compound turbocharger system plays a critical role in enhancing engine responsiveness at low RPMs. Its compact size allows it to spool up quickly, delivering immediate boost pressure when the engine operates at lower speeds. This rapid response minimizes turbo lag, ensuring the engine produces sufficient torque for tasks like accelerating from a standstill or towing heavy loads.

The Role of the Larger Turbo

The larger turbo takes over as the engine speed increases, providing sustained power and efficiency at higher RPMs. Its design allows it to handle greater volumes of air, which is essential for maintaining performance during demanding tasks like highway cruising or heavy acceleration. This transition ensures the engine continues to deliver power without compromising fuel efficiency.

Several benefits stem from the larger turbo's role in the system:

• It improves exhaust gas temperatures (EGTs) by 18-23%, which helps protect engine components.
• Fuel efficiency increases by a similar margin, with gains becoming more pronounced under heavy loads.
• The larger turbo's ability to manage high airflow ensures the engine operates smoothly at peak performance levels.

This combination of power and efficiency makes the larger turbo indispensable for achieving the balance required in a compound system.

How the Two Turbos Work Together

The synergy between the smaller and larger turbos defines the effectiveness of a compound turbocharger system. At low RPMs, the smaller turbo provides immediate boost, ensuring the engine responds quickly to throttle inputs. As the engine speed rises, the larger turbo gradually takes over, delivering the airflow needed for sustained power.

This interaction requires careful engineering to optimize performance. Key considerations include:

• Managing exhaust backpressure to prevent performance losses.
• Controlling boost levels to ensure smooth transitions between the two turbos.
• Arranging components, such as placing a supercharger between the turbos, to balance efficiency and complexity.

By working together, the two turbos create a seamless power delivery system that maximizes both performance and efficiency. This design ensures the engine operates optimally across its entire RPM range, making compound turbochargers a standout choice for demanding applications.

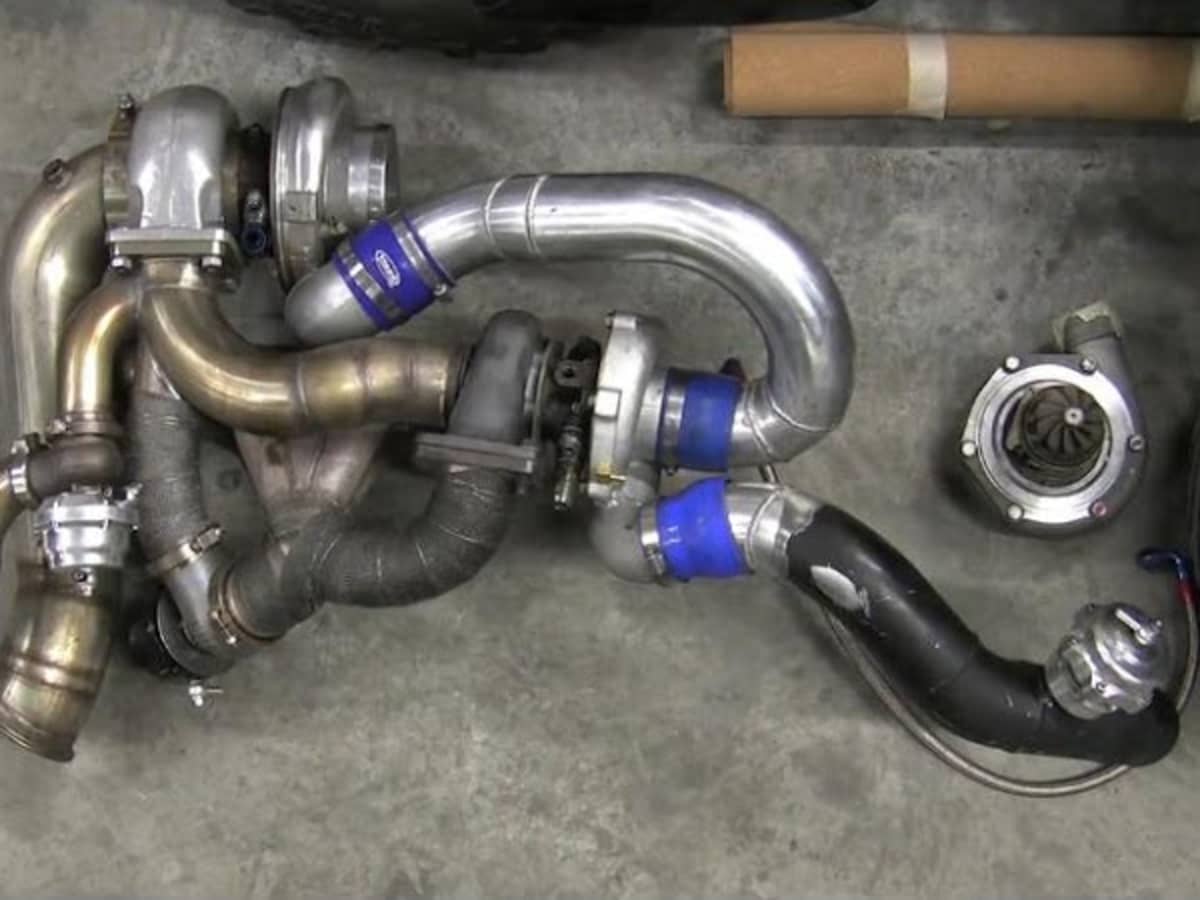

Key Components of a Compound Turbo System

(Image from hubpages)

Turbos of Different Sizes

Turbos of varying sizes form the backbone of a compound turbocharger system. Each turbo serves a distinct purpose, ensuring the engine operates efficiently across its entire RPM range. The smaller turbo delivers quick responsiveness at low speeds, while the larger turbo provides sustained power at higher RPMs. Selecting the right turbo size is critical for achieving optimal performance.

• Matching turbo size to engine displacement ensures efficient airflow and breathing.
• Defining horsepower targets helps engineers choose turbos that meet power demands without sacrificing control.
• Considering spool characteristics allows for seamless integration with the engine's powerband.

These design choices enhance driveability and mechanical efficiency, making turbos of different sizes indispensable for compound systems.

Boost Control Mechanisms

Boost control mechanisms regulate the pressure generated by the turbos, ensuring smooth transitions and preventing engine damage. Wastegates and bypass valves play a vital role in managing boost levels. Wastegates divert excess exhaust gases away from the turbine, preventing overboost conditions. Bypass valves, on the other hand, help maintain consistent airflow during turbo transitions.

The analysis of exergy destruction highlights the importance of these components. As more parts are added to the system, total exergy destruction increases. This underscores the need for precise engineering to minimize losses and maximize efficiency. Superchargers, often integrated into compound systems, further enhance performance by increasing air and fuel injection, albeit with higher exergy destruction.

Airflow and Exhaust Management

Effective airflow and exhaust management ensure the turbos operate efficiently. Proper routing of intake air and exhaust gases minimizes backpressure and optimizes turbo performance. Engineers often use intercoolers to cool compressed air, improving engine efficiency and reducing the risk of overheating.

Exhaust management focuses on directing gases through the turbos in a way that maximizes energy recovery. By carefully designing the exhaust manifold and turbine housing, engineers can reduce restrictions and improve the system's overall efficiency. This balance between airflow and exhaust flow is essential for maintaining the reliability and longevity of compound turbochargers.

Compound Turbochargers vs. Other Turbo Systems

Compound vs. Twin Turbocharging

Compound turbochargers and twin turbocharging systems differ significantly in design and performance. Twin turbocharging uses two turbos of the same size, each serving a specific set of cylinders. This setup improves airflow and reduces lag, but it often struggles to deliver consistent performance across a wide RPM range. In contrast, compound turbochargers combine a smaller and a larger turbo. This pairing ensures better power delivery at both low and high engine speeds.

The broader torque curve of compound systems makes them more versatile. Twin turbocharging systems excel in high-performance sports cars, where quick acceleration is key. However, compound turbochargers shine in applications requiring both low-end torque and sustained power, such as heavy-duty vehicles or engines designed for towing.

Compound vs. Sequential Turbocharging

Sequential turbocharging systems also use two turbos, but their operation differs from compound setups. In a sequential system, one turbo operates at low RPMs, while the second activates at higher speeds. This design aims to reduce lag and improve efficiency. However, the transition between the two turbos can sometimes feel less seamless.

Compound turbochargers, on the other hand, operate simultaneously. The smaller turbo provides immediate boost, while the larger turbo enhances performance as engine speed increases. This continuous interaction results in smoother power delivery. Additionally, compound systems manage exhaust gases more efficiently, which helps maintain lower exhaust gas temperatures and improves engine longevity.

Why Compound Turbocharging is Unique

Compound turbocharging stands out due to its ability to optimize performance across the entire RPM range. Unlike other systems, it uses two stages of air compression, which enhances both power and efficiency. The table below highlights key differences between compound turbochargers and other turbo systems.

This combination of features makes compound turbochargers a preferred choice for engines requiring both power and efficiency. Their ability to deliver consistent performance under varying conditions sets them apart from other turbocharging technologies.

Enhanced Power and Torque Delivery

Compound turbochargers significantly enhance power and torque delivery, making them ideal for applications requiring robust performance. The system's ability to combine a smaller, quick-spooling turbo with a larger, high-capacity turbo ensures rapid acceleration and sustained power. This dual-turbo setup minimizes turbo lag, allowing engines to respond swiftly to throttle inputs.

Performance data highlights the advantages of compound turbo systems:

• Torque peaks at 1470 ft lbs at 2300 rpm, showcasing exceptional power delivery.
• The system completes a run from 1300 to 3200 rpm in just 9.2 seconds, demonstrating quick spool-up.
• Compared to the SXE362, the compound system reaches peak torque faster, achieving it in 6 seconds versus 8 seconds.
• The SXE369 takes 18 seconds to spool, emphasizing the compound system's efficiency in reducing lag.

These metrics underline the system's ability to deliver consistent power across a wide RPM range, making it a preferred choice for heavy-duty vehicles and performance-focused applications.

Improved Fuel Efficiency

Compound turbochargers not only boost performance but also improve fuel efficiency. By optimizing airflow and reducing energy losses, these systems enable engines to extract more power from each drop of fuel. The smaller turbo provides immediate boost at low RPMs, reducing the need for excessive fuel consumption during acceleration. Meanwhile, the larger turbo ensures efficient operation at higher speeds, maintaining fuel economy even under heavy loads.

Engines equipped with compound turbochargers often achieve better brake specific fuel consumption (BSFC) compared to single-turbo setups. This improvement becomes particularly evident during high-load conditions, where the system's ability to manage exhaust gases efficiently reduces energy waste. For industries relying on fuel-intensive operations, such as transportation and construction, this translates to significant cost savings over time.

FAQ

What is the main purpose of a compound turbocharger?

A compound turbocharger enhances engine performance by combining two turbos of different sizes. The smaller turbo provides quick response at low RPMs, while the larger turbo ensures sustained power at higher speeds. This setup delivers smooth power and efficiency across the entire RPM range.

How does a compound turbocharger reduce turbo lag?

The smaller turbo in the system spools up quickly at low engine speeds. This immediate boost minimizes the delay in power delivery, commonly known as turbo lag. The larger turbo then takes over at higher RPMs, ensuring a seamless transition and consistent performance.

Are compound turbochargers suitable for all vehicles?

Compound turbochargers work best in vehicles requiring both low-end torque and high-end power. They are ideal for heavy-duty trucks, performance cars, and machinery. However, they may not be practical for smaller vehicles due to space and cost constraints.

What maintenance does a compound turbocharger require?

Routine maintenance includes inspecting seals, cleaning the intercooler, and checking for leaks in the boost control system. Using high-quality lubricants and following service schedules can extend the system's lifespan and ensure optimal performance.

Can a compound turbocharger improve fuel efficiency?

Yes, compound turbochargers optimize airflow and reduce energy losses. The smaller turbo minimizes fuel consumption during acceleration, while the larger turbo maintains efficiency at higher speeds. This combination helps engines extract more power from each drop of fuel, improving overall fuel economy.
